L Shape LED Light Bar RK3288 Android Tablet 10″ WIFI Android Advertising Display
- Model No.: MA1001-H
- 10.1 inch IPS panel, 1280x800 HD Res, LED Light Bar
- CPU: RK3288 / RK3128 for choice
- 10-point capacitive touchscreen
- Network: Wifi, RJ45, Bluetooth

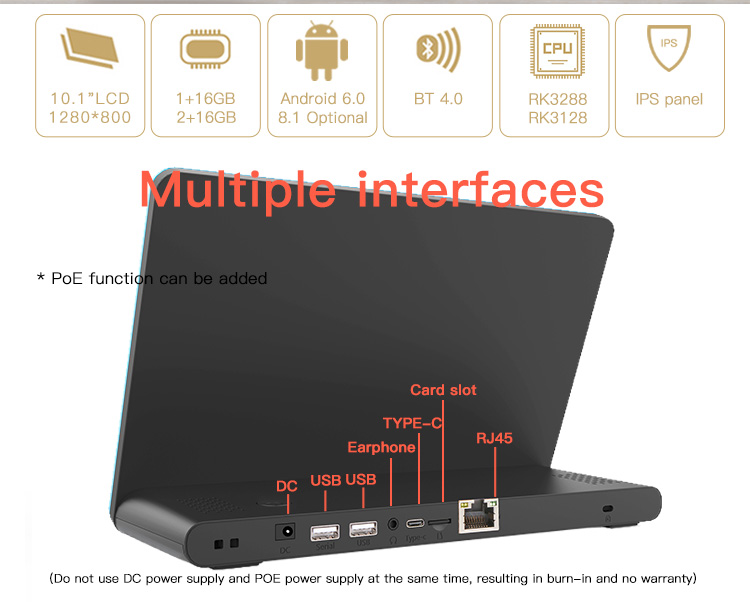

- Interface: SD card, USB,Type-C, RJ45
- Mounting type: Desktop
- Option : POE, Buit-In Battery
- Warranty: 2-years since received monitors
- Specifications
| System | CPU | 1. Quad core cortex A17,1.6G,RK3288 2. RK 3128 Quad core cortex A7 |
||||||||||||
| RAM | 1/2GB (4GB optional) | |||||||||||||
| Internal memory | 16GB (32GB optional) | |||||||||||||
| Operation system | Android 8.1 (RK3288) / Android 6.0 (RK128) | |||||||||||||
| Display | Screen | 10.1″ LCD IPS screen, LED backlight | ||||||||||||
| Resolution | 1280×800 @60Hz | |||||||||||||
| Brightness | 250cd/m2 | |||||||||||||
| Contrast | 800:1 | |||||||||||||
| dot pitch | 0.297×0.297 | |||||||||||||
| Viewing angles | 89/89(H),89/89(V) | |||||||||||||
| Color | 16.7M | |||||||||||||
| Aspect Ratio | 16:9 | |||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Ethernet | RJ45 | |||||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||||
| Interface | Card Slot | TF,support up to 32GB | ||||||||||||
| USB | USB host | |||||||||||||
| Type-c | USB OTG Onely | |||||||||||||
| Serial port | USB type serial port | |||||||||||||
| RJ45 | Ethernet interface ( POE function optional IEEE802.3at,POE+,class 4， 25.5W ) | |||||||||||||
| Power jack | DC power input | |||||||||||||
| Earphone | 3.5mm earphone | |||||||||||||
| Multi-Media | Audio | MP3/WMA/AAC etc. | ||||||||||||
| Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K | |||||||||||||
| Picture | JPEG | |||||||||||||
| Other functions | Color | White/Black | ||||||||||||
| Battery | Option | |||||||||||||
| OSD language | Multi OSD language | |||||||||||||
| Speakers | Built-in 2×3W speakers | |||||||||||||
| Camera | 5.0M/P,front camera | |||||||||||||
| Micphone | yes | |||||||||||||
| Working temp | 0–40degree | |||||||||||||
| LED light bar | LED light bar with RGB and mixed color | |||||||||||||
| Accessories | Adapter | Adapter,12V,1.5A | ||||||||||||
| User manual | One | |||||||||||||
